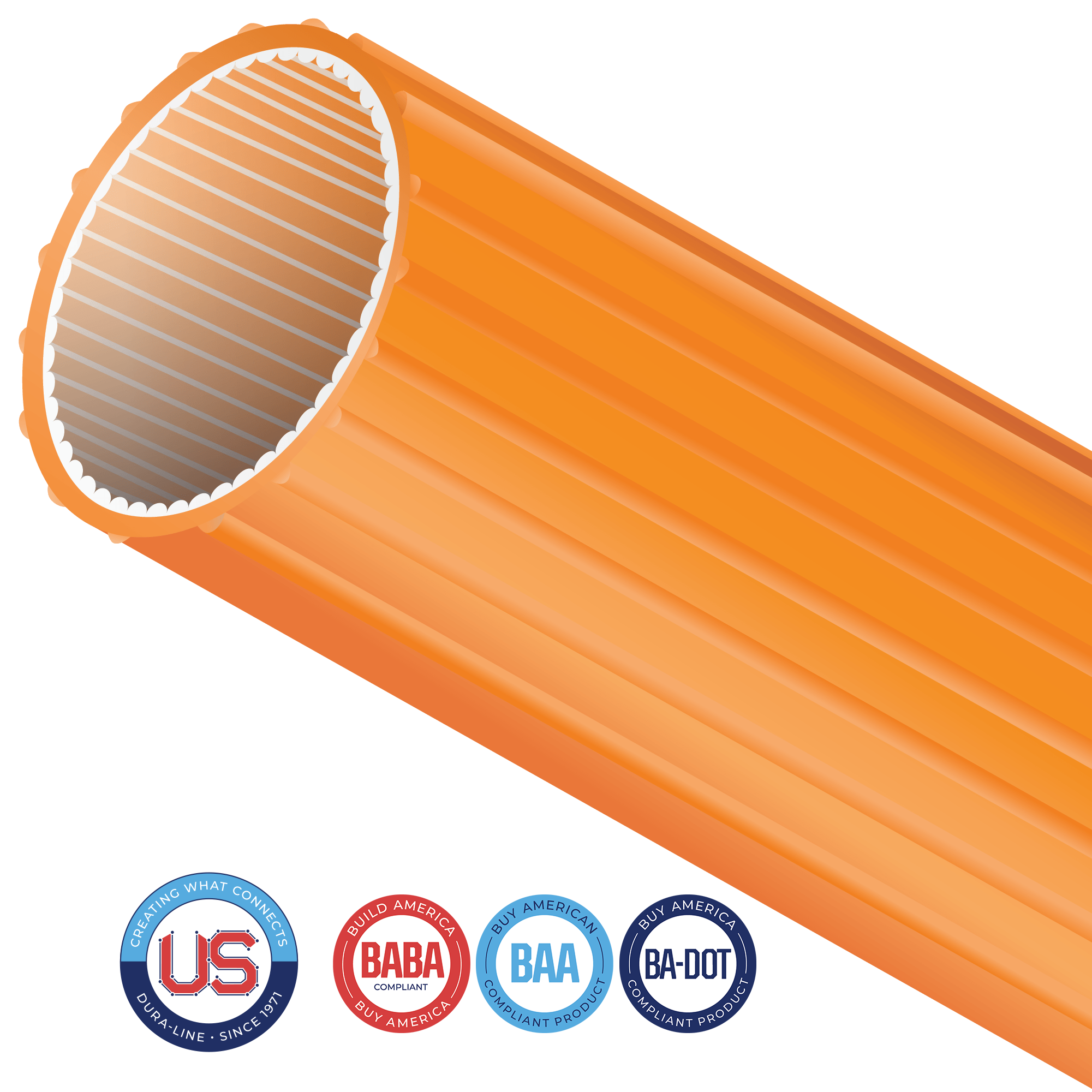

Ribbed In/Out

HDPE duct with inner and outer ribs. The internal longitudinal ribs for a reduced coefficient of friction, while the external ribs help prevent spiraling and reduce friction when pulling innerduct into larger conduits. Available with optional Silicore ULF permanently lubricated lining.

HDPE duct with inner and outer ribs. The internal longitudinal ribs for a reduced coefficient of friction, while the external ribs help prevent spiraling and reduce friction when pulling innerduct into larger conduits. Available with optional Silicore ULF permanently lubricated lining.

We offer an extensive portfolio of US-made conduit products and accessories that conform with several domestic preference standards, including Buy America (BAA), Build America, Buy America (BABA), and DOT Buy American requirements. Any products including a locate wire or preinstalled cables, will need to be specifically evaluated. Fire Retardant Resins may also require additional evaluation to meet program guidelines. Please contact your Dura-Line representative for more information.

Features

Manufactured from flexible HDPE, makes gradual bends without special equipment
External ribs help reduce spiraling during duct installation and reduces installation forces when installed into conduit
Internal ribs reduce the the coefficient of friction during cable placement
Continuous lengths reduce joining costs
Excellent low-temperature properties, allows installation in cold climates
Outstanding long-term cable protection from shifting ground, rock, and root impingement
Provides a permanent pathway, simplifies future cable repairs or replacement
Available as Parallel or Divided Reels -up to 3 conduits

Details

Footage/Meter Markings
Internal Ribs

HDPE duct with inner and outer ribs. The internal longitudinal ribs for a reduced coefficient of friction, while the external ribs help prevent spiraling and reduce friction when pulling innerduct into larger conduits. Available with optional Silicore ULF permanently lubricated lining.

Quick Links

Dura-Line Academy

Specifications and Shipping Info

Choose Conduit Size, Wall Type, and Wall Ratio

Nominal Size

Wall Type

Wall Ratio

Select Size and Wall Dimensions above

Downloads

Product Family Technical Data Sheet

DL_Rib InOut_12.24

Colors

Blue

Blue

Orange

Orange

Green

Green

Brown

Brown

Gray

Gray

White

White

Red

Red

Black

Black

Terra Cotta

Terra Cotta

or custom

Options

Pre-Installed Tape

Pre-Installed Cable

Color Stripes

Extra UV Protection

Parallel or Divided Reels
