2 Inch HDPE Sweeps

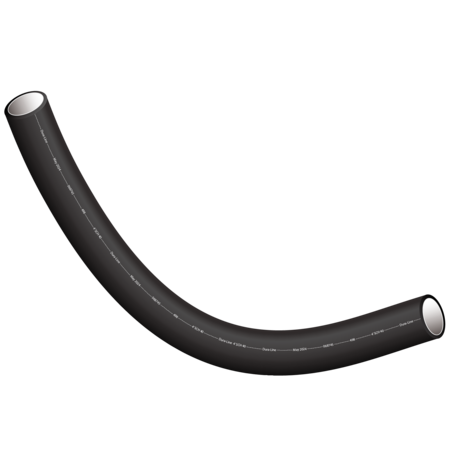

Manufactured from flexible high-density polyethylene (HDPE), sweeps enable changes in direction and elevation in a longer run of conduit. Sweeps can be used in a variety of applications, including telecommunications, data centers, and power networks. Available in sizes from 2” to 8” outer diameter (OD) with standard bend angles of 45° and 90° with 36” radius and custom options available upon request. Products are available in black (typical) or gray and are UV-grade.
Features
- Manufactured from flexible HDPE
- Excellent low-temperature properties allows for installation in cold climates
- Standard bend angles of 45° and 90° with 36" Radius
- Co-extruded with SILICORE® ULF permanent lining to reduce friction on cable installs
- Certain sizes listed to UL 651A
- Custom options available upon request
Technical Details
Part # | Description | Radius (in.) | Packaging | Amount of Items per Pallet |
---|---|---|---|---|
20095835 | 2" SDR 9 - 45 Degree | 36 | Pallet | 150 |
20095834 | 2" SDR 9 - 90 Degree | 36 | Pallet | 150 |
20005879 | 2" SDR 11 - 45 Degree | 36 | Pallet | 150 |
20005880 | 2" SDR 11 - 90 Degree | 36 | Pallet | 150 |
20005881 | 2" SDR 13.5 - 45 Degree | 36 | Pallet | 150 |
20005882 | 2" SDR 13.5 - 90 Degree | 36 | Pallet | 150 |
20094814 | 2" SDR 13.5 - 90 Degree Gray | 36 | Pallet | 150 |
20096032 | 2" SCH 40 - 22.5 Degree | 36 | Pallet | 150 |
20094686 | 2" SCH 40 - 45 Degree | 36 | Pallet | 150 |
20094685 | 2" SCH 40 - 90 Degree | 36 | Pallet | 150 |
20094904 | 2" SCH 40 - 90 Degree Gray | 36 | Pallet | 150 |
20096229 | 2" SDR 13.5 - 90 Degree 24R | 24 | Pallet | 150 |
