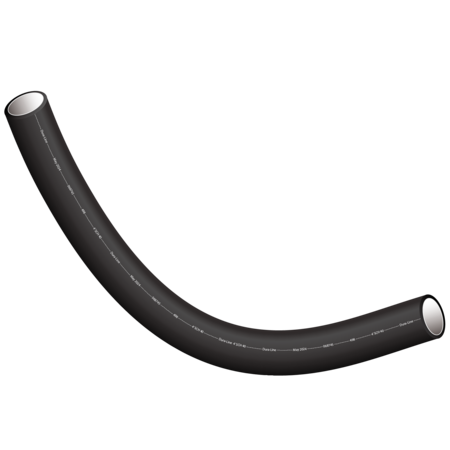

3 Inch HDPE Sweeps
Manufactured from flexible high-density polyethylene (HDPE), sweeps enable changes in direction and elevation in a longer run of conduit. Sweeps can be used in a variety of applications, including telecommunications, data centers, and power networks. Available in sizes from 2” to 8” outer diameter (OD) with standard bend angles of 45° and 90° with 36” radius and custom options available upon request. Products are available in black (typical) or gray and are UV-grade.
Features
- Manufactured from flexible HDPE
- Excellent low-temperature properties allows for installation in cold climates
- Standard bend angles of 45° and 90° with 36" Radius
- Co-extruded with SILICORE® ULF permanent lining to reduce friction on cable installs
- Certain sizes listed to UL 651A
- Custom options available upon request
Technical Details
Part # | Description | Radius (in.) | Packaging | Amount of Items per Pallet |
---|---|---|---|---|
20005883 | 3" SDR 11 - 45 Degree | 36 | Pallet | 75 |
20005884 | 3" SDR 11 - 90 Degree | 36 | Pallet | 70 |
20094433 | 3" SDR 13.5 - 45 Degree | 36 | Pallet | 75 |
20094434 | 3" SDR 13.5 - 90 Degree | 36 | Pallet | 75 |
20094815 | 3" SDR 13.5 - 90 Degree Gray | 36 | Pallet | 75 |
20094688 | 3" SCH 40 - 45 Degree | 36 | Pallet | 75 |
20094687 | 3" SCH 40 - 90 Degree | 36 | Pallet | 75 |
20096033 | 3" SCH 40 - 22.5 Degree | 36 | Pallet | 150 |
