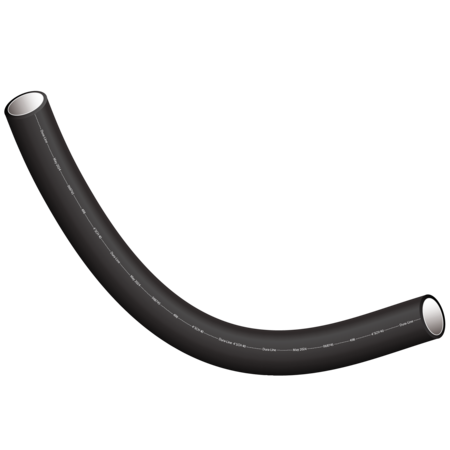

5 Inch HDPE Sweeps
Manufactured from flexible high-density polyethylene (HDPE), sweeps enable changes in direction and elevation in a longer run of conduit. Sweeps can be used in a variety of applications, including telecommunications, data centers, and power networks. Available in sizes from 2” to 8” outer diameter (OD) with standard bend angles of 45° and 90° with 36” radius and custom options available upon request. Products are available in black (typical) or gray and are UV-grade.
Features
- Manufactured from flexible HDPE
- Excellent low-temperature properties allows for installation in cold climates
- Standard bend angles of 45° and 90° with 36" Radius
- Certain sizes listed to UL 651A
- Custom options available upon request
Technical Details
Part # | Description | Radius (in.) | Packaging | Amount of Items per Pallet |
---|---|---|---|---|
20096189 | 5" SDR 13.5 - 45 Degree | 36 | Pallet | 25 |
20094577 | 5" SDR 13.5 - 90 Degree | 36 | Pallet | 20 |
Downloads
Specifications
