F-150i

HydraLube® F-150i incorporates new lubricant technology to create a high-performance, water-based pourable lubricant formulated for many difficult applications, including extremely long pulls with multiple bends. It is designed to meet or exceed all cable pulling requirements with respect to viscosity, cling, drag, wetting, operational temperature range and reduction of pulling tension. Lubricant application systems are available.
HydraLube® F-150i incorporates new lubricant technology to create a high-performance, water-based pourable lubricant formulated for many difficult applications, including extremely long pulls with multiple bends. It is designed to meet or exceed all cable pulling requirements with respect to viscosity, cling, drag, wetting, operational temperature range and reduction of pulling tension. Lubricant application systems are available.

Features

  • New technology for increased friction reduction; Will not be displaced by cables
  • Silicone modified for maximum friction reduction properties
  • Especially effective for placement of fiber optic, coaxial and other communications cables
  • Highly effective for placing high-voltage power cables
  • Can be poured or pumped
  • Compatible with all types of cable jackets
  • Slow drying, leaves a lubricating, non-adhesive film
  • UL listed
  • Available in wide range of package sizes
Ask your question
F-150i

Technical Specifications

Part # Description Packaging Weight/Package (lb) Quantity/Pallet Total Pallet Weight (lb) Lubricant Box Dimensions

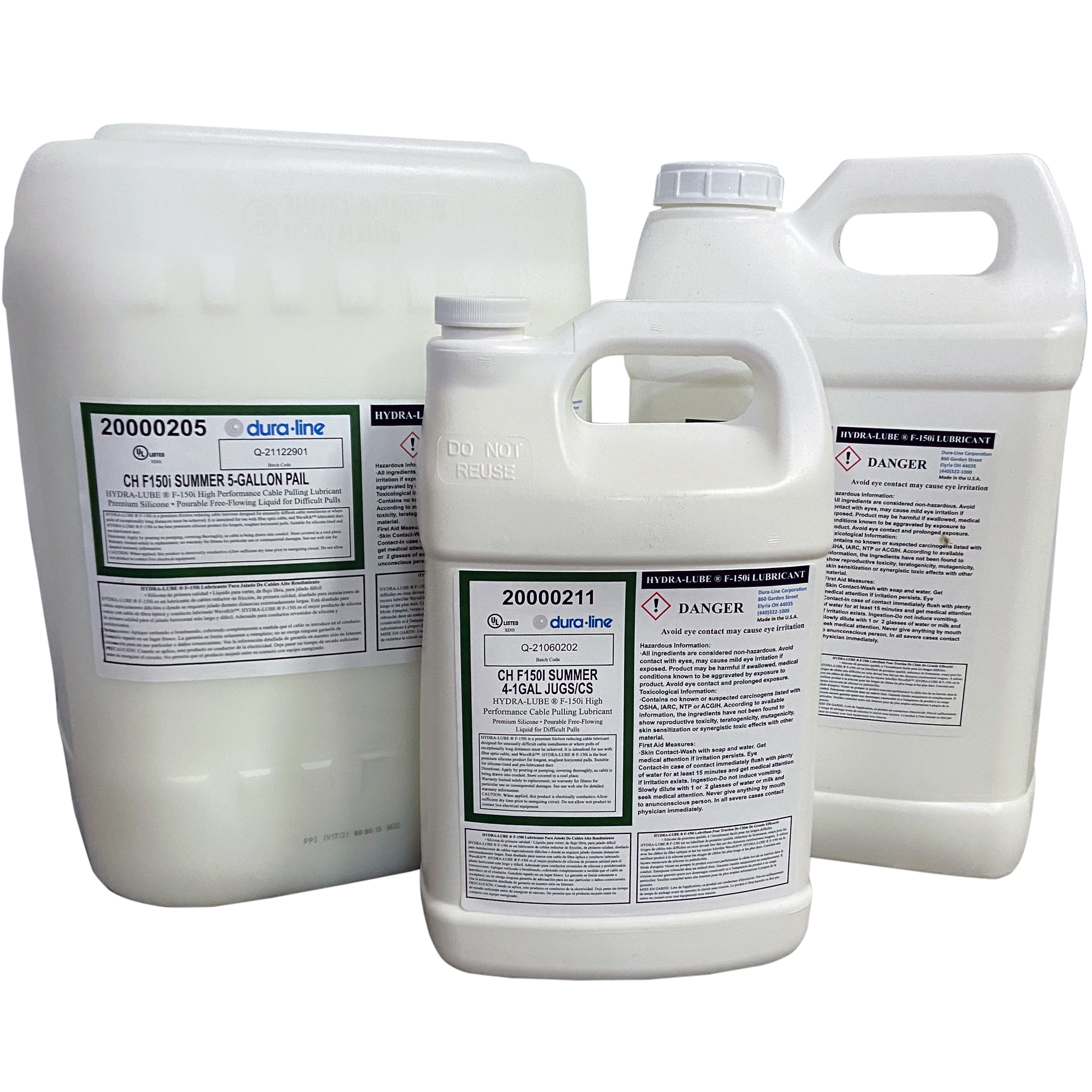

20000211 HydraLube F150i Summer (4) 1 Gallon (4) 1 Gallon 38 30 1170 12.5Hx8.5Wx15.5L
20000212 HydraLube F150i Summer (2) 2.5 Gallon (2) 2.5 Gallon 45 30 1380 13.5Hx9Wx13L
20000205 HydraLube F150i Summer 5 Gallon Pail 5 Gallon Drum 48 24 894 14.5Hx12Wx12L
20002217 HydraLube F150i Summer 55 Gallon Drum 55 Gallon Drum 491 4 1994 35Hx23Wx23L
20000213 HydraLube F150i Winter (2) 2.5 Gallon (2) 2.5 Gallon 45 30 1380 13.5Hx9Wx13L
20000214 HydraLube F150i Winter 5 Gallon Pail 5 Gallon Drum 48 24 894 14.5Hx12Wx12L
20000193 HydraLube F150i Canadian (6) 1 Gallon (6) 1 Gallon 52 18 30 12.5Hx14.5Wx14.5L

Downloads

Specifications Download All
DL_Lubricant F150i 1.25
DL_Lubricant 2.25

Other Lubricants

HydraLube® F-100i incorporates new lubricant technology to create a high-performance, water-based pourable lubricant formulated for many applications, such as fiber optic, coaxial, 600 V and higher voltage-rated cables. It is designed to meet or exceed all cable pulling requirements with respect to viscosity, cling, drag, wetting, operational temperature range and reduction of pulling tension. Lubricant application systems are available.

F-100i

HydraLube® F-100i incorporates new lubricant technology to create a high-performance, water-based pourable lubricant formulated for many applications, such as fiber optic, coaxial, 600 V and higher voltage-rated cables. It is designed to meet or exceed all cable pulling requirements with respect to viscosity, cling, drag, wetting, operational temperature range and reduction of pulling tension. Lubricant application systems are available.
HydraLube® F-200i incorporates new lubricant technology to create a high-performance, water-based gel lubricant formulated for many difficult applications, such as 600 V and higher voltage-rated cables. F200i is designed to meet or exceed all cable pulling requirements with respect to viscosity, cling, drag, wetting, operational temperature range and reduction of pulling tension. Lubricant application systems are available.

F-200i

HydraLube® F-200i incorporates new lubricant technology to create a high-performance, water-based gel lubricant formulated for many difficult applications, such as 600 V and higher voltage-rated cables. F200i is designed to meet or exceed all cable pulling requirements with respect to viscosity, cling, drag, wetting, operational temperature range and reduction of pulling tension. Lubricant application systems are available.
HydraLube® F-300i is a polymer-based, water soluble lubricant specifically formulated for placement of wire and cable for electric and telecommunications applications. The pourable gel consistency of HydraLube® F-300i allows for easy application in underground horizontal pulls, whether by pouring directly into the cable feeder tube or applying by pump, thus avoiding the mess of hand application. HydraLube F-300i is designed to meet or exceed all cable pulling requirements with respect to viscosity drag, wetting, operation temperature range, and reduction of pulling friction.

F-300i

HydraLube® F-300i is a polymer-based, water soluble lubricant specifically formulated for placement of wire and cable for electric and telecommunications applications. The pourable gel consistency of HydraLube® F-300i allows for easy application in underground horizontal pulls, whether by pouring directly into the cable feeder tube or applying by pump, thus avoiding the mess of hand application. HydraLube F-300i is designed to meet or exceed all cable pulling requirements with respect to viscosity drag, wetting, operation temperature range, and reduction of pulling friction.
HydraLube® AT-500 is a high-performance silicone lubricant formulated specifically for use with compressed air-assisted cable blowing, jetting and pushing systems. These systems inject a high volume of air into the conduit which will rapidly dry out conventional cable placement lubricants (including silicone-based) and cause surface stickiness. Furthermore, the initial temperature of the compressed air can be very high, which will accelerate drying of the lubricant. HydraLube® AT-500 deposits a special low-friction silicone coating on the conduit wall surface that is resistant to the drying effects of the rapid air movement and high heat. This product is fully compatible with cable jackets and HDPE or PVC conduit systems.

AT-500

HydraLube® AT-500 is a high-performance silicone lubricant formulated specifically for use with compressed air-assisted cable blowing, jetting and pushing systems. These systems inject a high volume of air into the conduit which will rapidly dry out conventional cable placement lubricants (including silicone-based) and cause surface stickiness. Furthermore, the initial temperature of the compressed air can be very high, which will accelerate drying of the lubricant. HydraLube® AT-500 deposits a special low-friction silicone coating on the conduit wall surface that is resistant to the drying effects of the rapid air movement and high heat. This product is fully compatible with cable jackets and HDPE or PVC conduit systems.
LUBADUK® keeps pull tensions low; up to 74% less friction and 50% less pulling tension than with other lubricants. The effectiveness of LUBADUK® has been proven in the field and with extensive testing. Reduced cable tension (as much as 50%) greatly reduces the wear on cable pulling equipment and improves safety. A unique shear-sensitive carrying agent holds a dispersion of silicone oil and microspheres in suspension. LUBADUK® microspheres are tiny ball bearings, with diameters between 0.010” and 0.020.” Pulling cable with LUBADUK® means cable actually rolls on a layer of microspheres, which keep friction between cable and conduit extremely low. Any change in the cable contact point provides a fresh layer of microspheres, keeping friction low.

Lubaduk

LUBADUK® keeps pull tensions low; up to 74% less friction and 50% less pulling tension than with other lubricants. The effectiveness of LUBADUK® has been proven in the field and with extensive testing. Reduced cable tension (as much as 50%) greatly reduces the wear on cable pulling equipment and improves safety. A unique shear-sensitive carrying agent holds a dispersion of silicone oil and microspheres in suspension. LUBADUK® microspheres are tiny ball bearings, with diameters between 0.010” and 0.020.” Pulling cable with LUBADUK® means cable actually rolls on a layer of microspheres, which keep friction between cable and conduit extremely low. Any change in the cable contact point provides a fresh layer of microspheres, keeping friction low.
