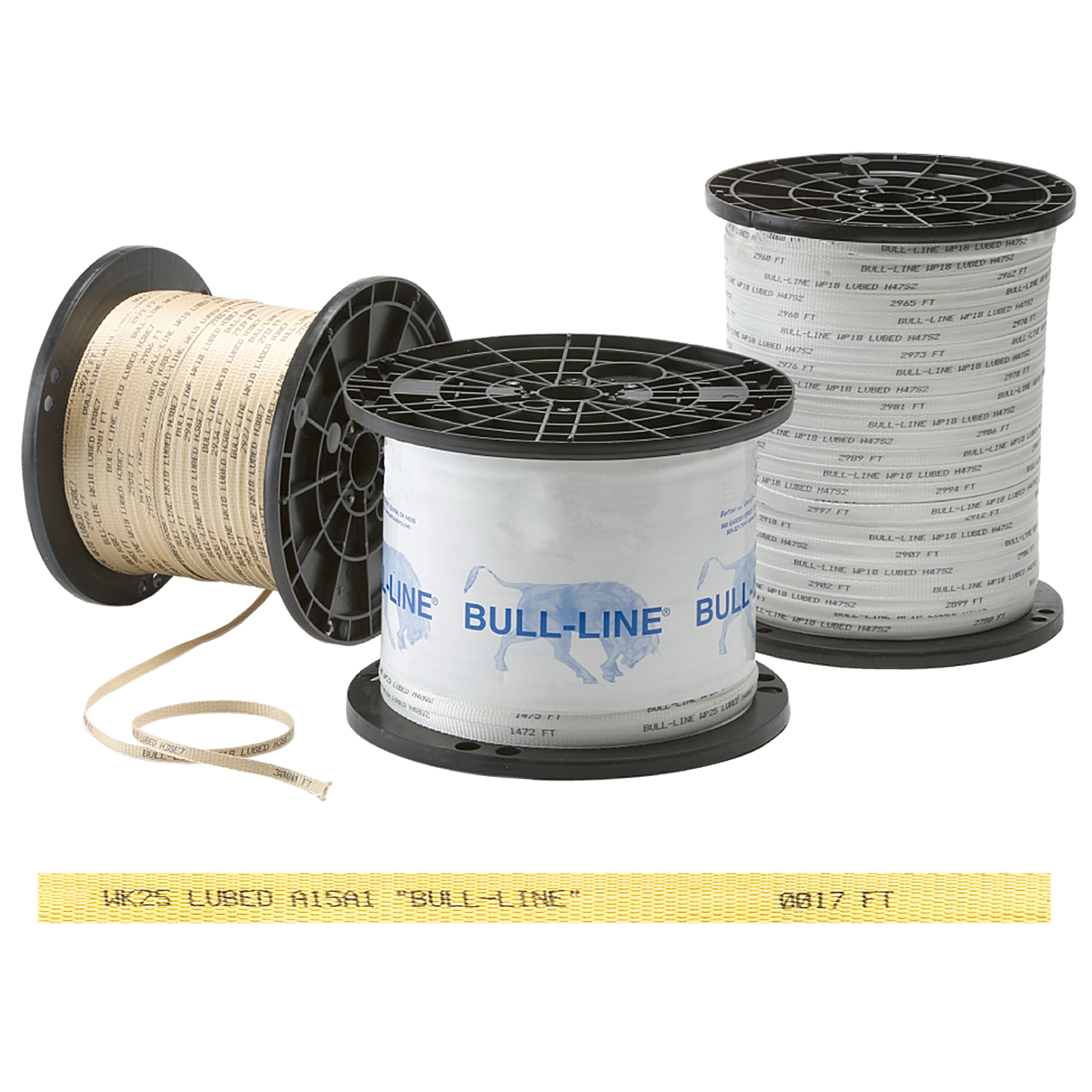

Aramid Tape
Bull-Line Aramid Pull Tape offers the highest tensile strength per widths along with low elongation. These tapes are also sequentially marked in feet and meters for accurate installation measurements. Bull-Line Aramid Pull Tape is Made in the USA.
Features
- High strength, low stretch
- Very good burn-through (conduit cutting) resistance
- Excellent blowability into conduit
- Accurate sequential foot or meter markings
- Available on reels in a wide variety of continuous lengths
- Can be factory pre-installed into conduit
- Tensile Strength range 1,800 lbs - 2,500 lbs
Technical Specifications
Select Tensile Strength
1800 lb
2500 lb
| Part # | Description | Approx Tape Width (in.) | Length (ft) | Length (m) | Reel type | Reel Size (in) | Reel Weight (lb) | # Reels/Pallet | Total Pallet Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|
| 20000132 | Bull-Line Aramid Tape WK18 1000ft | 0.5 " | 1000 ' | Wood | 8 " | 5 lb | 100 | 520 lb | |
| 20000036 | Bull-Line Aramid Tape WK18 3000ft | 0.5 " | 3000 ' | Plastic | 12 " | 12.7 lb | 48 | 629.6 lb | |
| 20002173 | Bull-Line Aramid Tape WK18 5000ft | 0.5 " | 5000 ' | Plastic | 13 " | 19.7 lb | 36 | 729.2 lb |
