Locatable Tape

Locatable Tape

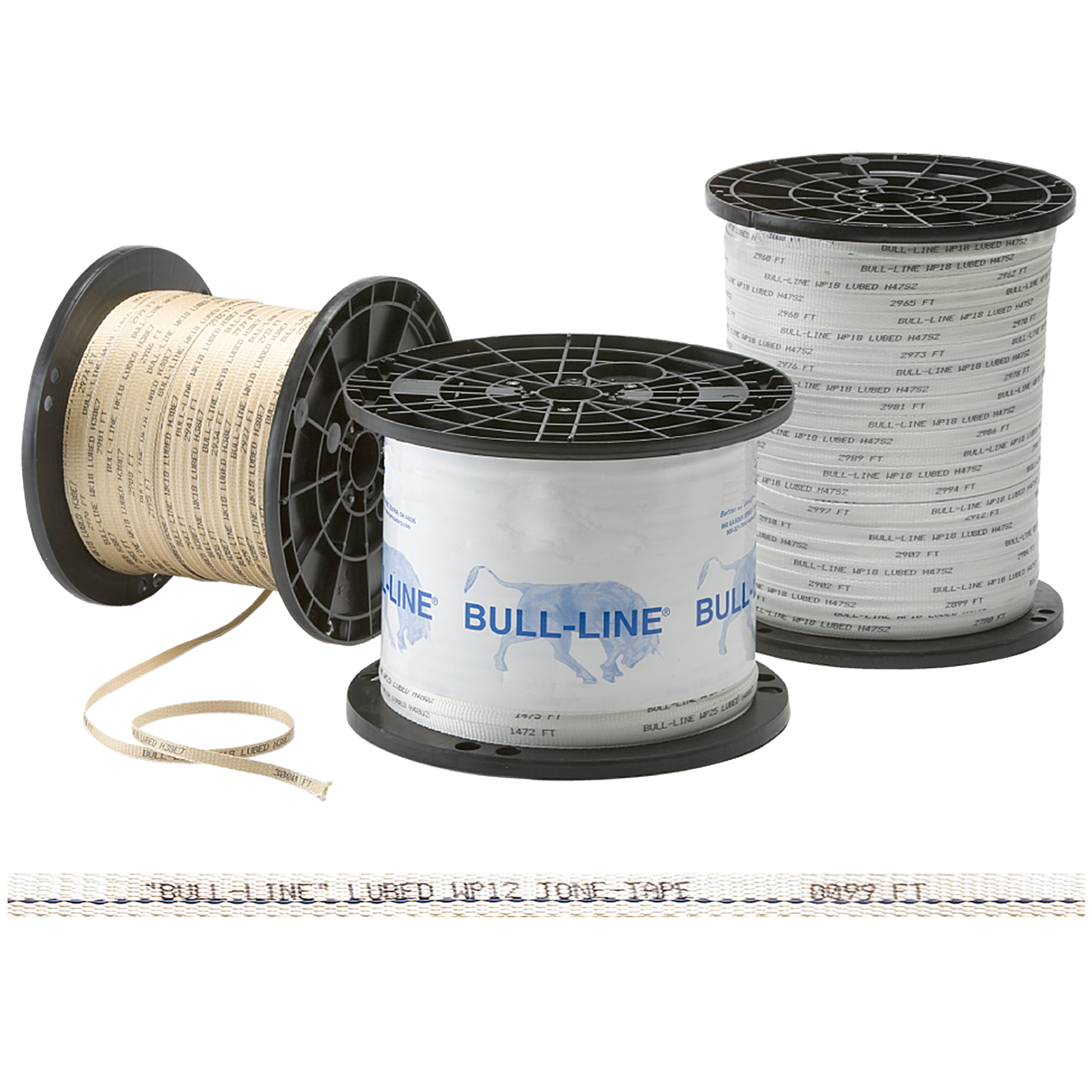

Bull-Line Locatable Tape is offered with a tracer wire for signal locating. The tracer wire is woven into Bull-Line Polyester Tape and provides a corrosion resistance conductor that is easily spliced in the field. Bull-Line Locatable Tape is made in the USA.

Features

  • Incorporates a tracer wire for signal locating
  • Corrosion resistant fibers and conductor
  • Accurate sequential foot or meter markings
  • Wire conductors can be easily spliced in the field
  • Can be factory pre-installed into conduit
  • 22AWG (Solid) BC Semi-Rigid PVC Insulated 300V
  • Conductor diameter 0.025 inches
  • Tensile strength range 500 lbs - 2,500 lbs
Locatable Tape

Technical Specifications

Select Tensile Strength

500 lb
1000 lb
1250 lb
1800 lb
2500 lb
Part # Description Approx Tape Width (in.) Length (ft) Length (m) Reel type Reel Size (in) Reel Weight (lb) # Reels/Pallet Total Pallet Weight (lb)
20000323 Bull-Line Locatable Tape WP05LC 5000ft 0.25 " 5000 ' Plastic 12 " 30.4 lb 48 1510.2 lb
20002194 Bull-Line Locatable Tape WP10LC 3000ft 0.4375 " 3000 ' Plastic 13 " 29.4 lb 36 1109 lb
20000140 Bull-Line Locatable Tape WP12LC 1000ft 0.5 " 1000 ' Wood 8 " 11.8 lb 100 1231 lb
20000059 Bull-Line Locatable Tape WP12LC 3000ft 0.5 " 3000 ' Plastic 13 " 33.2 lb 36 1246.2 lb
20000061 Bull-Line Locatable Tape WP12LC 5000ft 0.5 " 5000 ' Plastic 14 " 55 lb 36 2031 lb
20000058 Bull-Line Locatable Tape WP12LC 10000ft 0.5 " 10000 ' Plastic 18 " 108 lb 10 1131 lb
20000225 Bull-Line Locatable Tape WP18LC 500ft 0.625 " 500 ' Wood 8 " 8.1 lb 100 856 lb
20000221 Bull-Line Locatable Tape WP18LC 1000ft 0.625 " 1000 ' Plastic 12 " 15.3 lb 48 785.4 lb
20000163 Bull-Line Locatable Tape WP18LC 3000ft 0.625 " 3000 ' Plastic 14 " 42.8 lb 36 1591.8 lb
20000313 Bull-Line Locatable Tape WP18LC 5000ft 0.625 " 5000 ' Plastic 16 " 69.9 lb 18 1309.2 lb
20000384 Bull-Line Locatable Tape WP18LC 5500ft 0.625 " 5500 ' Plastic 16 " 76.5 lb 18 1427.1 lb
20002187 Bull-Line Locatable Tape WP18LC 10000ft 0.625 " 10000 ' Plastic 18 " 136 lb 10 1411 lb
20000328 Bull-Line Locatable Tape WP18LC 900m 0.625 " 900 m Plastic 14 " 42.2 lb 36 1569.5 lb
20003874 Bull-Line Locatable Tape WP18LC 1000m 0.625 " 1000 m Plastic 16 " 47.4 lb 18 903.8 lb
20003890 Bull-Line Locatable Tape WP18LC 1800m 0.625 " 1800 m Plastic 16 " 81.8 lb 18 1522.7 lb
20002191 Bull-Line Locatable Tape WP18LC 2000m 0.625 " 2000 m Plastic 16 " 90.4 lb 18 1677.4 lb
20000279 Bull-Line Locatable Tape WP25LC 1000ft 0.75 " 1000 ' Plastic 12 " 19 lb 48 963 lb
20000155 Bull-Line Locatable Tape WP25LC 3000ft 0.75 " 3000 ' Plastic 16 " 54.8 lb 18 1037.4 lb
20000174 Bull-Line Locatable Tape WP25LC 5000ft 0.75 " 5000 ' Plastic 16 " 88.4 lb 18 1642.2 lb
20003588 Bull-Line Locatable Tape WP25LC 900m 0.75 " 900 m Plastic 16 " 54 lb 18 1023.1 lb
20003862 Bull-Line Locatable Tape WP25LC 2000m 0.75 " 2000 m Plastic 22 " 117.6 lb 8 992.1 lb
