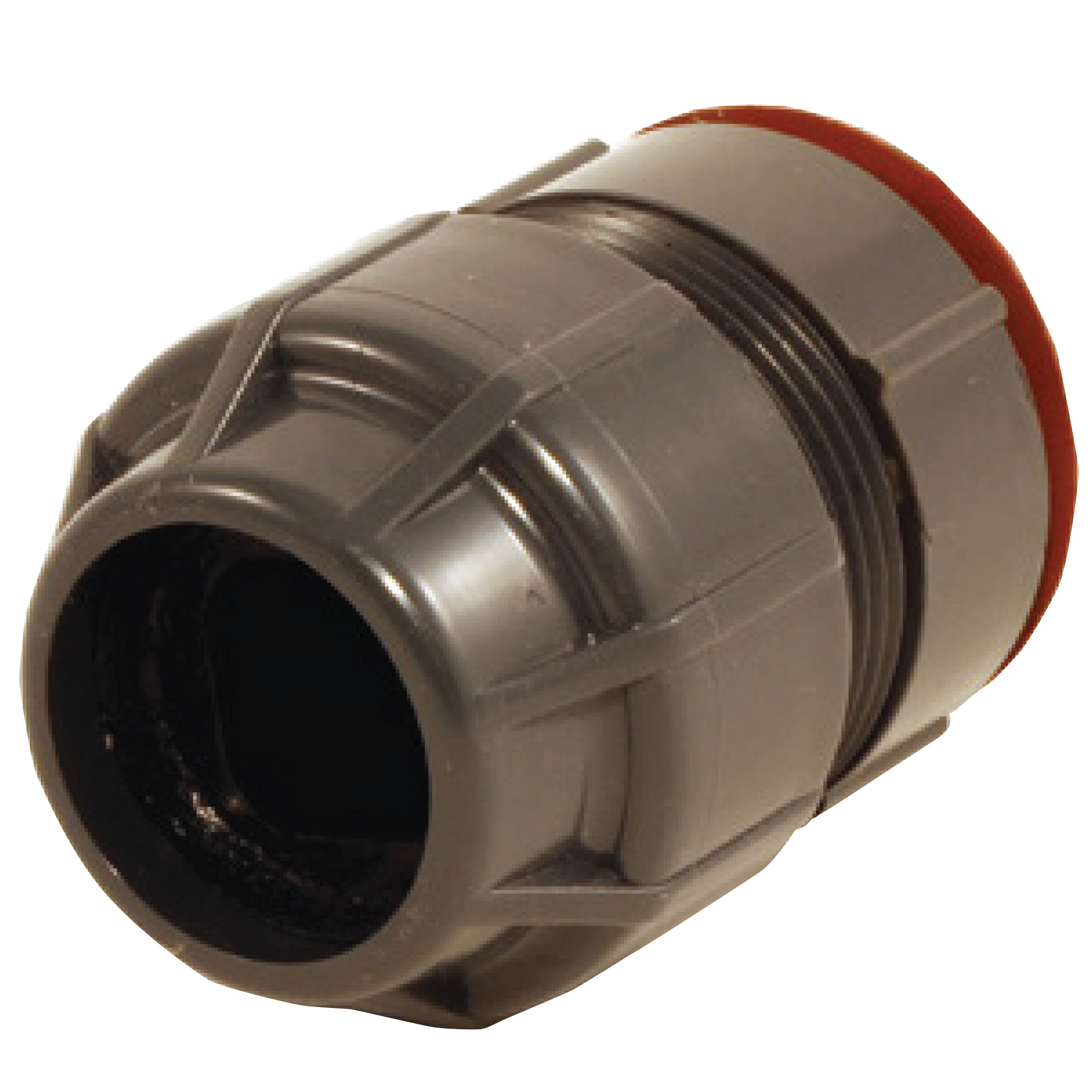

FuturePath Enclosure Connector

Recommended MicroDuct and FuturePath enclosure connector for OSP applications. Used to join Dura-Line's MicroTechnology products to assorted cabinets. Bulkhead Connectors are also available in sizes 8.5mm and 12.7mm
Recommended MicroDuct and FuturePath enclosure connector for OSP applications. Used to join Dura-Line's MicroTechnology products to assorted cabinets. Bulkhead Connectors are also available in sizes 8.5mm and 12.7mm

Features

  • Includes lock & nut
  • Creates a weather-tight seal
  • No special tools required
  • Choose size based upon FuturePath configurations and size of MicroDuct
Ask your question
FuturePath Enclosure Connector

Technical Specifications

Part #
20003961
Description
4-way 16mm Enclosure Connector
Part #
20001712
Description
8.5mm Bulkhead Connector w/ Locking Ring
Part #
20005470
Description
7-way 18mm Enclosure Connector
Part #
20003039
Description
Single 5mm Enclosure Connector
Part #
20003041
Description
3-way 5mm Enclosure Connector
Part #
20003043
Description
7-way 5mm Enclosure Connector
Part #
20003045
Description
19-way 5mm Enclosure Connector
Part #
20003047
Description
25-way 5mm Enclosure Connector
Part #
20001915
Description
2-way 8.5mm Enclosure Connector
Part #
20001916
Description
4-way 8.5mm Enclosure Connector
Part #
20001918
Description
12-way 8.5mm Enclosure Connector
Part #
20001920
Description
24-way 8.5mm Enclosure Connector
Part #
20003051
Description
2-way 12.7mm Enclosure Connector
Part #
20003053
Description
4-way 12.7mm Enclosure Connector
Part #
20003478
Description
7-way 16mm Enclosure Connector
Part #
20003017
Description
12.7mm Bulkhead Connector w/ Locking Ring
Part #
20094146
Description
3-way 18mm Enclosure Connector
Part #
20003040
Description
2-way 5mm Enclosure Connector
Part #
20003042
Description
4-way 5mm Enclosure Connector
Part #
20003044
Description
12-way 5mm Enclosure Connector
Part #
20003046
Description
24-way 5mm Enclosure Connector
Part #
20003048
Description
Single 8.5mm Enclosure Connector
Part #
20003049
Description
3-way 8.5mm Enclosure Connector
Part #
20001917
Description
7-way 8.5mm Enclosure Connector
Part #
20001919
Description
19-way 8.5mm Enclosure Connector
Part #
20003050
Description
Single 12.7mm Enclosure Connector
Part #
20003052
Description
3-way 12.7mm Enclosure Connector
Part #
20003054
Description
7-way 12.7mm Enclosure Connector

Downloads

Specifications
DL_FP Enclosure Connector_11.2023
BulkHead Connectors_3.21
