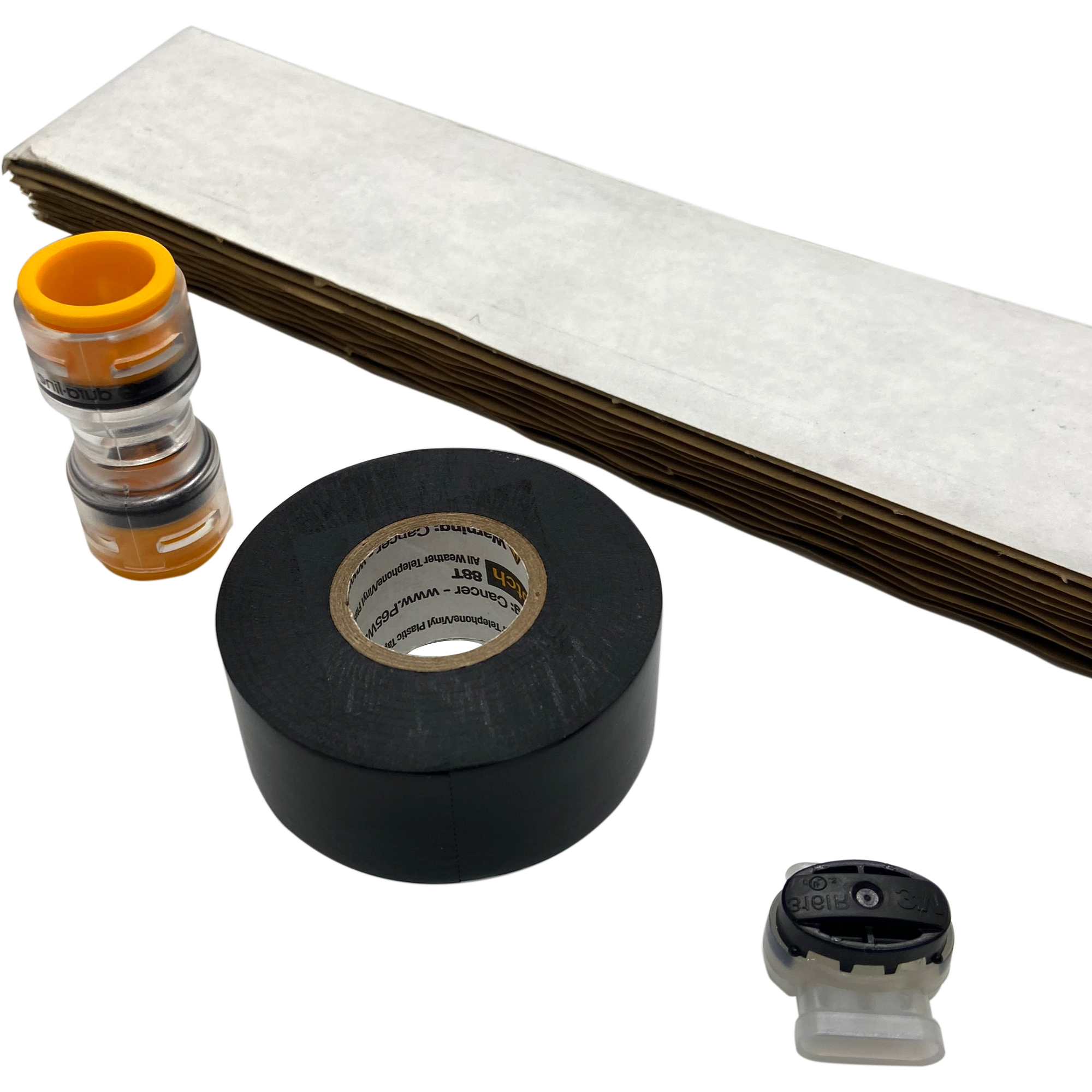

Splice Kits

FuturePath Splice Kits provide all the necessary components to join segments of FuturePath. Kits include correct size of sleeve, couplers, sealant strips, vinyl tape and locate wire connector.
FuturePath Splice Kits provide all the necessary components to join segments of FuturePath. Kits include correct size of sleeve, couplers, sealant strips, vinyl tape and locate wire connector.

Features

  • Provides superior splice point protection from impact and external conditions
  • Designed for direct bury applications
  • Contains all items necessary for splicing and connecting FuturePath
  • Low profile
  • Additional mechanical protection to maintain integrity of air- and water-tight Micro-coupled bundle
  • Custom designed for each FuturePath configuration
  • Does not compromise jetting or cable installation performance
  • Detailed instructions provided with each kit on proper splice procedures and usage
Ask your question
Splice Kits

Kit Information

Select FuturePath Configuration

2-Way Kit
2-Way Kit
3-Way Kit
4-Way Kit
6-Way Kit
7-Way Kit
10-Way Kit
12-Way Kit
15-Way Kit
19-Way Kit
24-Way Kit
Part # Description Packaging
20094925 2-way 8.5mm Splice Kit Each
20002486 2-way 10mm Splice Kit Each
20002427 2-way 12.7mm Splice Kit Each
20003738 2-way 14mm Splice Kit Each
20002429 2-way 16/12mm Splice Kit Each
20005873 2-way 16/13mm Splice Kit Each
20003892 2-way 18mm Splice Kit Each
20003762 2-way 22mm Splice Kit Each
20095016 3-way 1" Jumbo Splice Kit Each
20095692 3-way 1 1/4" Jumbo Splice Kit Each
20002475 3-way 16/12mm Splice Kit Each
20005874 3-way 16/13mm Splice Kit Each
20002430 3-way 18mm Splice Kit Each
20003570 3-way 22mm Splice Kit Each
20095119 4-way 1" Jumbo Splice Kit Each
20095015 4-way 1 1/4" Jumbo Splice Kit Each
20094926 4-way 8.5mm Splice Kit Each
20002472 4-way 10mm Splice Kit Each
20001877 4-way 12.7mm Splice Kit Each
20003891 4-way 14mm Splice Kit Each
20001532 4-way 16/12mm Splice Kit Each
20005875 4-way 16/13mm Splice Kit Each
20003832 4-way 18mm Splice Kit Each
20003520 4-way 22mm Splice Kit Each
20004684 4-way 27mm Splice Kit Each
20002481 6-way (3) 8.5mm & (3) 18mm Hybrid Splice Kit Each
20095693 6-way (3) 22mm & (3) 1 1/4" Hybrid Splice Kit Each
20095694 6-way (3) 22mm & (3) 1 1/2" Hybrid Splice Kit Each
20002483 7-way 8.5mm Splice Kit Each
20002473 7-way 10mm Splice Kit Each
20002428 7-way 12.7mm Splice Kit Each
20003739 7-way 14mm Splice Kit Each
20001943 7-way 16/12mm Splice Kit Each
20005876 7-way 16/13mm Splice Kit Each
20095351 7-way 18mm Armored Splice Kit Each
20001533 7-way 18mm Splice Kit Each
20096965 7-way 22/18mm Splice Kit Each
20003893 7-way 22/16mm Splice Kit Each
20004685 7-way 27mm Splice Kit Each
20095045 10-way 18mm Splice Kit Each
20095046 10-way 22/16mm Splice Kit Each
20002480 10-way (6) 8.5mm & (4) 18mm Hybrid Splice Kit Each
20095042 12-way 8.5mm Splice Kit Each
20004008 15-way (11) 14mm & (4) 16mm Hybrid Splice Kit Each
20095043 19-way 8.5mm Splice Kit Each
20095044 24-way 8.5mm Splice Kit Each

Downloads

Specifications
DL_FP Splice Kit TDS 7.25

Other MicroAccessories

Micro Couplers are used to join two segments of MicroDucts. Straight and Transition couplers are available. Multiple sizes available starting at 5 mm

Micro Couplers

Micro Couplers are used to join two segments of MicroDucts. Straight and Transition couplers are available. Multiple sizes available starting at 5 mm
Seal the ends of your MicroDucts with Micro End Caps. Sizes available from 5mm to 27mm.

Micro End Caps

Seal the ends of your MicroDucts with Micro End Caps. Sizes available from 5mm to 27mm.

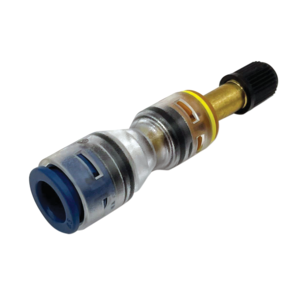

A resealable valve has been installed on the end of Dura-Line's existing Micro End Caps to make OverRide installations safer and more efficient. The OverRide Micro End Cap is placed on the far end of the reel (opposite of the end being installed) and allows the installer to safely pressurize and depressurize the MicroDuct before and after an OverRide installation.

OverRide Micro End Cap

A resealable valve has been installed on the end of Dura-Line's existing Micro End Caps to make OverRide installations safer and more efficient. The OverRide Micro End Cap is placed on the far end of the reel (opposite of the end being installed) and allows the installer to safely pressurize and depressurize the MicroDuct before and after an OverRide installation.
Using the correct tool for the job makes all the difference. Choose from a variety of cutters designed with a special purpose in mind - making the job go safely, smoothly, and quickly.

MicroDuct Cutters

Using the correct tool for the job makes all the difference. Choose from a variety of cutters designed with a special purpose in mind - making the job go safely, smoothly, and quickly.
The MicroDuct Organizer was designed to arrange MicroDucts at termination. It’s small and compact, requiring a minimum amount of mounting space. The modular design allows ordering additional brackets as needed.

MicroDuct Organizer

The MicroDuct Organizer was designed to arrange MicroDucts at termination. It’s small and compact, requiring a minimum amount of mounting space. The modular design allows ordering additional brackets as needed.
Gas Block Connectors provide a simple and effective gas seal between the MicroDuct and the fiber cable to prevent gas, water, or moisture from entering the duct. The connector creates a seal around the installed cable.

Gas Block Connector

Gas Block Connectors provide a simple and effective gas seal between the MicroDuct and the fiber cable to prevent gas, water, or moisture from entering the duct. The connector creates a seal around the installed cable.

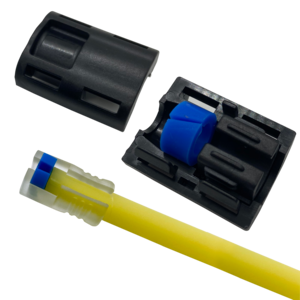

Divisible Duct Seals provide an air- and water-tight seal between the cable OD and the inner wall of the MicroDuct. The hard outer cover is divisible so it can be easily installed around an existing cable.

Divisible Duct Seal Kits

Divisible Duct Seals provide an air- and water-tight seal between the cable OD and the inner wall of the MicroDuct. The hard outer cover is divisible so it can be easily installed around an existing cable.

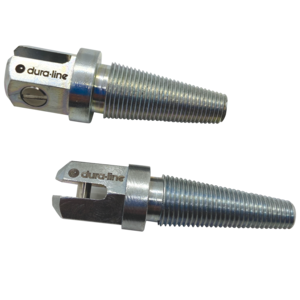

Made from Zinc coated Carbon steel, MicroDuct Pulling Eyes facilitate the quick placement of MicroDucts. The hex head design allows for faster and safer installation and removal from the duct. The Pulling Harnesses can accommodate up to 4 Micro Pulling Eyes at a time and have staggered eyelets every 4 inches.

MicroDuct Pulling Eyes and Harnesses

Made from Zinc coated Carbon steel, MicroDuct Pulling Eyes facilitate the quick placement of MicroDucts. The hex head design allows for faster and safer installation and removal from the duct. The Pulling Harnesses can accommodate up to 4 Micro Pulling Eyes at a time and have staggered eyelets every 4 inches.

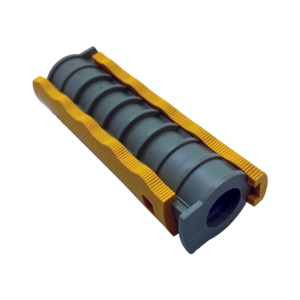

Excellent for use in repair scenarios or at jetting heads, the MicroDuct Split Coupler provides a high quality, air- and water-tight seal. The divisible halves allow for installation around pre-installed cables.

MicroDuct Split Coupler

Excellent for use in repair scenarios or at jetting heads, the MicroDuct Split Coupler provides a high quality, air- and water-tight seal. The divisible halves allow for installation around pre-installed cables.
Recommended MicroDuct and FuturePath enclosure connector for OSP applications. Used to join Dura-Line's MicroTechnology products to assorted cabinets. Bulkhead Connectors are also available in sizes 8.5mm and 12.7mm

FuturePath Enclosure Connector

Recommended MicroDuct and FuturePath enclosure connector for OSP applications. Used to join Dura-Line's MicroTechnology products to assorted cabinets. Bulkhead Connectors are also available in sizes 8.5mm and 12.7mm
eABF cables are designed by AFL to offer the most rugged and reliable enterprise-based blown fiber solution in the market today. The cable design combines a light-weight, low-drag jacketing system that allows the cable to be blown long distances. The cable series also features additional attributes that set this product above and beyond traditional blown fiber cables. These enhanced features include mechanical strengthening that permits the cable to comply with industry-standard premise interconnect specifications. In addition, the eABF cable series feature flame-resistance characteristics which result in stand-alone riser and plenum rated options suitable for routing outside of the micro-duct system. Because of these mechanical, environmental and optical qualifications, eABF cables can also be installed in third-party, flame-rated duct and pathway systems.

eABF Cables

eABF cables are designed by AFL to offer the most rugged and reliable enterprise-based blown fiber solution in the market today. The cable design combines a light-weight, low-drag jacketing system that allows the cable to be blown long distances. The cable series also features additional attributes that set this product above and beyond traditional blown fiber cables. These enhanced features include mechanical strengthening that permits the cable to comply with industry-standard premise interconnect specifications. In addition, the eABF cable series feature flame-resistance characteristics which result in stand-alone riser and plenum rated options suitable for routing outside of the micro-duct system. Because of these mechanical, environmental and optical qualifications, eABF cables can also be installed in third-party, flame-rated duct and pathway systems.

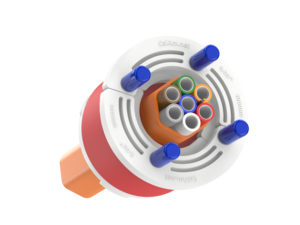

FuturePath Entry Seals are an effective solution to protect multiple pathway configurations from water, dirt, and rodents. These seals have a simple installation process with no specialty tools required. A split-design makes this product ideal for both new and existing FuturePath pathways and allows the seal to be placed at any location on the duct itself.

FuturePath Entry Seal

FuturePath Entry Seals are an effective solution to protect multiple pathway configurations from water, dirt, and rodents. These seals have a simple installation process with no specialty tools required. A split-design makes this product ideal for both new and existing FuturePath pathways and allows the seal to be placed at any location on the duct itself.
The MicroDuct Distribution Box (MDB) is a convenient indoor junction box where multiple MicroDucts can be joined together. The box is used in conjunction with FuturePath Enclosure Connectors. The hinge door gives users easy access while providing protection from dirt, dust, and water.

Distribution Box

The MicroDuct Distribution Box (MDB) is a convenient indoor junction box where multiple MicroDucts can be joined together. The box is used in conjunction with FuturePath Enclosure Connectors. The hinge door gives users easy access while providing protection from dirt, dust, and water.

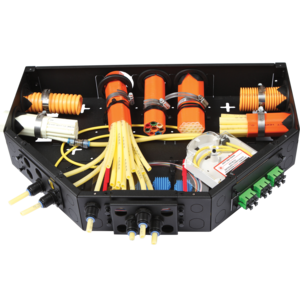

MDS Enclosure

MDS Enclosure

MDS Enclosure

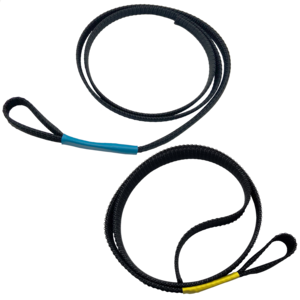

Low-profile and made from Dual Polymer and Kevlar construction, the mesh Pulling Grip is an extremely strong, yet convenient means of pulling various sizes of MicroDucts or cables.

Mesh Pulling Grips for MicroDucts and Cables

Low-profile and made from Dual Polymer and Kevlar construction, the mesh Pulling Grip is an extremely strong, yet convenient means of pulling various sizes of MicroDucts or cables.
