Micro Couplers

Micro Couplers
Micro Couplers are used to join two segments of MicroDucts. Straight and Transition couplers are available. Multiple sizes available starting at 5 mm

Features

  • Easy assembly/disassembly, no tools required
  • Provide an air and water tight connection
  • Color coded by size
  • Tested to meet or exceed the stringent requirements of CENELEC EN 50411-2-8:2009 Standard for MicroDuct Connectors, for Air Blown Optical Fibers
  • Low profile design
  • "HD" or "Heavy Duty" denotes enhanced pull-out and pressure characteristics
Micro Couplers

Technical Details

Select Coupler type

Straight
Transition
5mm Straight Coupler
5mm Straight Coupler 5/3.5mm (OD/ID)
20001462
7mm Straight Coupler
7mm Straight Coupler 7/5.5mm (OD/ID)
20001463
8.5mm Straight Coupler
8.5mm Straight Coupler 8.5/6mm (OD/ID)
20001834
12/8mm Straight Coupler
12mm Straight Coupler 12/8mm (OD/ID)
20001833
12.7mm Straight Coupler
12.7mm Straight Coupler 12.7/10mm (OD/ID)
20001832

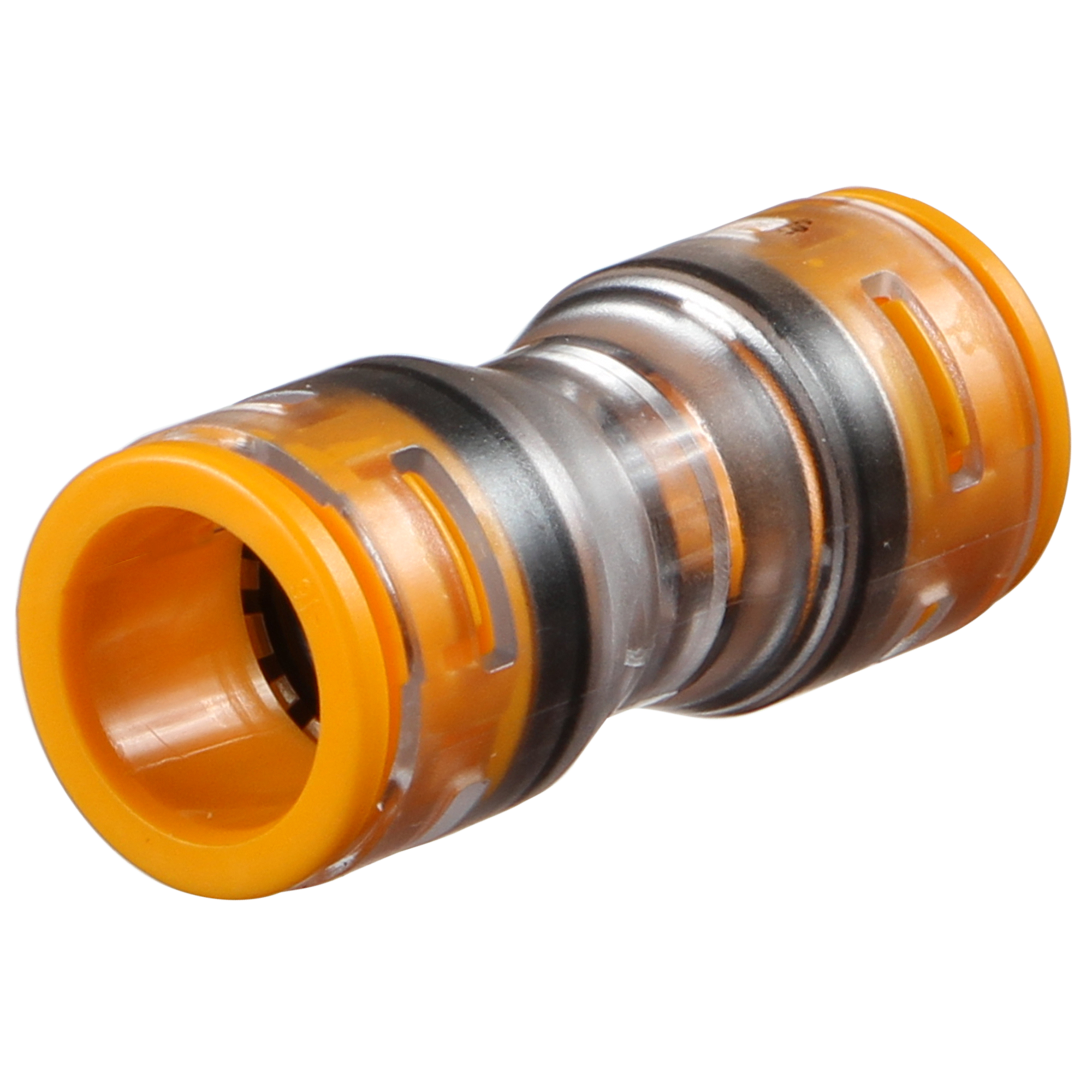

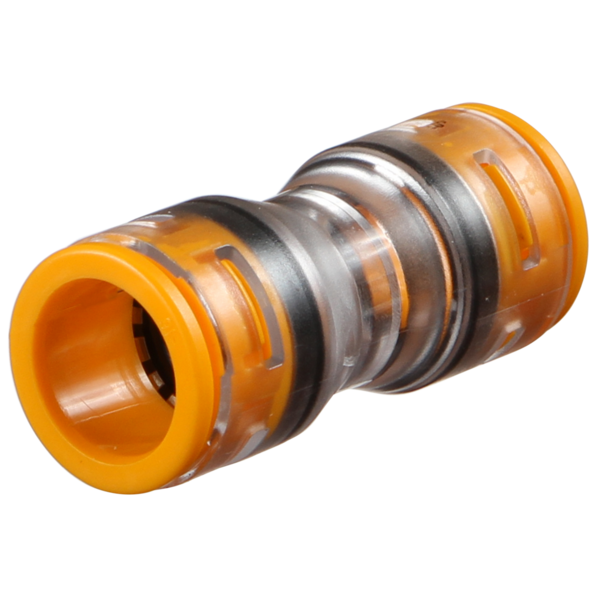

16mm Straight Coupler
16mm Straight Coupler 16/12mm (OD/ID)
20001517
18mm Heavy Duty Straight Coupler
18mm HD Straight Coupler 18/10mm (OD/ID)
20005217
27mm Straight Coupler
27mm Straight Coupler 27/20mm (OD/ID)
20001491
6mm Straight Coupler
6mm Straight Coupler 6/3mm (OD/ID)
20004725
8mm Straight Coupler
8mm Straight Coupler 8/6mm (OD/ID)
20003948
10mm Straight Coupler
10mm Straight Coupler 10/8mm (OD/ID)
20001831
12/10mm Straight Coupler
12mm Straight Coupler 12/10mm (OD/ID)
20005069
14mm Straight Coupler
14mm Straight Coupler 14/10mm (OD/ID)
20003430
18mm Straight Coupler
18mm Straight Coupler 18/14mm (OD/ID)
20001518
22mm Straight Coupler
22mm Straight Coupler 22/16mm (OD/ID)
20003137
