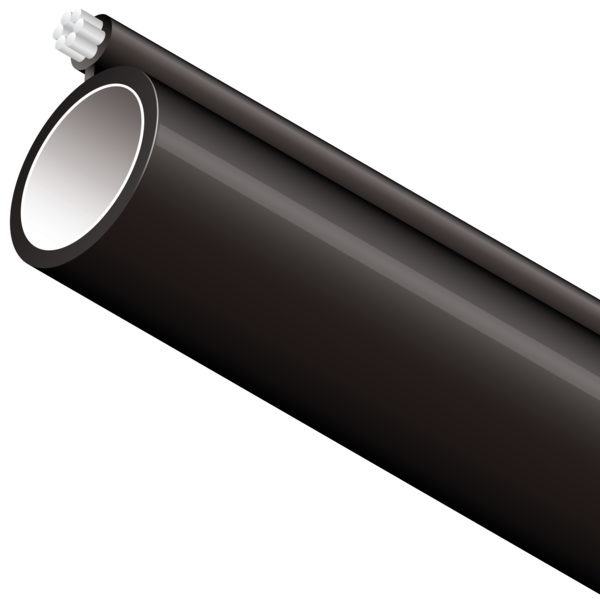

Figure-8

Standard Figure-8 aerial conduit is designed with an Extra High Strength (EHS) flooded galvanized support strand for one-step aerial placement. The conduit is manufactured with carbon black and antioxidants for maximum UV protection. Figure-8 can be installed with standard aerial installation practices.

Standard Figure-8 aerial conduit is designed with an Extra High Strength (EHS) flooded galvanized support strand for one-step aerial placement. The conduit is manufactured with carbon black and antioxidants for maximum UV protection. Figure-8 can be installed with standard aerial installation practices.

Features

Figure-8 construction with EHS (Extra High Strength), flooded galvanized support strand for one-step aerial placement
HDPE has carbon black and antioxidants for maximum UV protection
1/4" or 3/8" EHS galvanized strand
Hardware utilizes industry standard aerial components
Installation uses the same tools and equipment as standard aerial installation practices

Details

Footage/Meter Markings

Standard Figure-8 aerial conduit is designed with an Extra High Strength (EHS) flooded galvanized support strand for one-step aerial placement. The conduit is manufactured with carbon black and antioxidants for maximum UV protection. Figure-8 can be installed with standard aerial installation practices.

Quick Links

Dura-Line Academy

Specifications and Shipping Info

Choose Conduit Size, Wall Type/Ratio, and Strand Size

Nominal Size

Wall Type and Ratio

EHS Galvanized Strand (in)

Select Size and Wall Dimensions above

Downloads

Product Family Technical Data Sheet

Colors

UV Black

UV Black

Options

Pre-Installed Tape

Installations

Aerial
