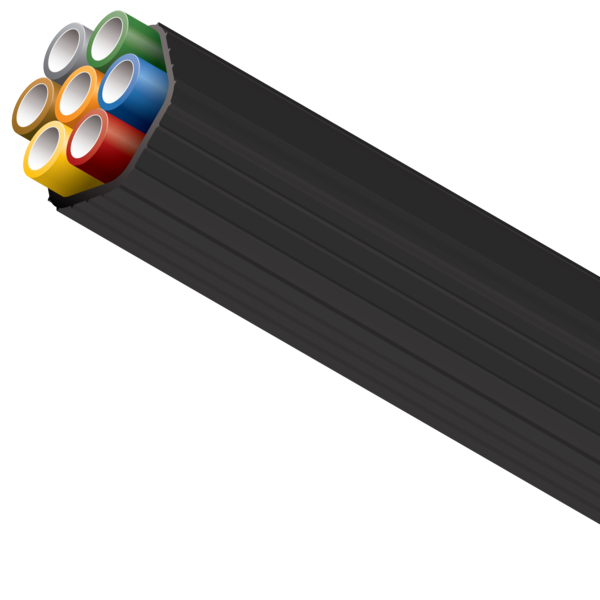

FuturePath Aerial

FuturePath Aerial is a bundled package of MicroDucts for easy installation in an aerial environment. FuturePath makes the best use of limited available space on the pole while reducing installation cost and time to deploy. No special installation hardware or tools are needed for deployment other than standard aerial installation equipment.

FuturePath Aerial is a bundled package of MicroDucts for easy installation in an aerial environment. FuturePath makes the best use of limited available space on the pole while reducing installation cost and time to deploy. No special installation hardware or tools are needed for deployment other than standard aerial installation equipment.

Features

MicroDucts factory bundled with a polyethylene oversheath
External ribs for easy gripping of lashing wire
Configurations: 7-way, 4-way, 3-way, 2-way
Cost-Effective – multiple pathways for one installation cost
No special tools or equipment are required for installation
Multiple pathways in place for future growth

Details

Footage/Meter Markings
Internal Ribs
Silicore® ULF
Rip Cord

Download Contact Us Compare

FuturePath Aerial is a bundled package of MicroDucts for easy installation in an aerial environment. FuturePath makes the best use of limited available space on the pole while reducing installation cost and time to deploy. No special installation hardware or tools are needed for deployment other than standard aerial installation equipment.

Quick Links

Specifications and Shipping Info

Choose the Configuration (# of pathways), then the MicroDuct size

Configuration

MicroDuct (OD/ID)

Select Configuration and MicroDuct size above

Downloads

Product Family Technical Data Sheet

DL_FP Aerial 5.22

Colors

UV Black

UV Black

Blue

Blue

Orange

Orange

Green

Green

Brown

Brown

Gray

Gray

White

White

Red

Red

Black

Black

Yellow

Yellow

Terra Cotta

Terra Cotta

or custom

Installations

Aerial

Applications

Campus Healthcare Industrial
Transportation
Fiber to the Home
