Shur-Lock II

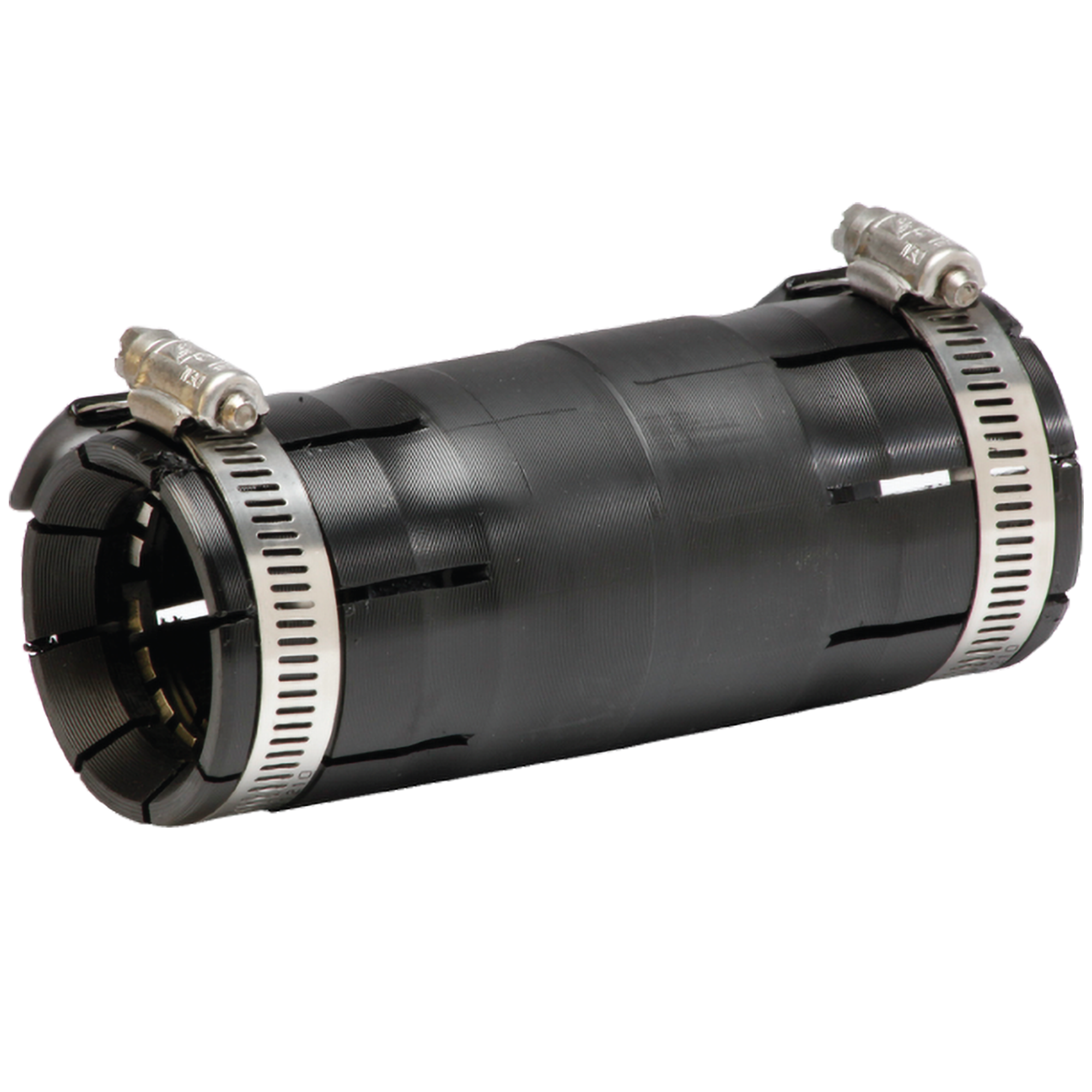

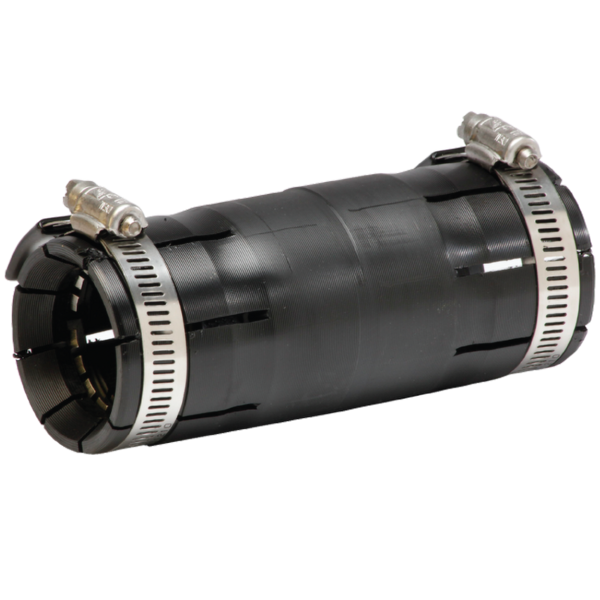

Shur-Lock II is a plastic coupler designed for coupling HDPE & PVC conduit. Can also be used to couple dissimilar conduits such as HDPE to PVC, threaded or non-threaded metal conduit, or fiberglass (FRP) conduit. The coupler features stainless steel band clamps (hand tightened using a 5/16" nut driver) and locking ring. A pre-lubricated O-ring forms an air-tight seal to withstand 125 PSI on 1" - 3" sizes. Also a specialized coupler for use by electrical installers requiring ETL/UL listing. Spreader Tools are available for sizes 3", 4", and 6" to aid in the installation process.
Shur-Lock II is a plastic coupler designed for coupling HDPE & PVC conduit. Can also be used to couple dissimilar conduits such as HDPE to PVC, threaded or non-threaded metal conduit, or fiberglass (FRP) conduit. The coupler features stainless steel band clamps (hand tightened using a 5/16" nut driver) and locking ring. A pre-lubricated O-ring forms an air-tight seal to withstand 125 PSI on 1" - 3" sizes. Also a specialized coupler for use by electrical installers requiring ETL/UL listing. Spreader Tools are available for sizes 3", 4", and 6" to aid in the installation process.

Features

  • One person installation
  • Re-enterable, no special tools required
  • Air-tight and water-tight
  • No ID reduction
  • Excellent pull-out strength on HDPE, PVC, FRP, and steel
  • UV resistant
  • No-Stop version available for confined areas or repairs
  • ETL Listed to CSA STD C22.2 18.3-04
  • Listed to UL STD 514B
Ask your question
Shur-Lock II

Technical Specifications

Select Coupler Type

Classic
Classic
No-Stop
Transition
Part # Description Nominal OD (in.) ETL Listed Height (in) Pull Out Strength (lb) Packaging Coupler Box Dimensions Amount of Items/Case
20000118 1" Shur-Lock II 1.315 ✔ 5.7 600 Case 12.5Lx5.75Wx6H 10
20000120 1 1/4" Shur-Lock II 1.66 ✔ 5.7 700 Case 12.5Lx5.75Wx6H 10
20000121 1 1/4" HYB Shur-Lock II 1.59 5.7 700 Case 12.5Lx5.75Wx6H 10
20000122 1 1/2" Shur-Lock II 1.9 ✔ 5.7 700 Case 12Lx8Wx7H 10
20000123 2" Shur-Lock II 2.375 ✔ 5.7 700 Case 7Lx6.5Wx16H 10
20000264 2" EXT Shur-Lock II 2.375 8.25 700 Case 14Lx10.5Wx9.5H 10
20000172 2 1/2" Shur-Lock II 2.875 ✔ 9.25 1000 Case 14Lx10.5Wx9.5H 6
20000173 3" Shur-Lock II 3.5 ✔ 10.75 1000 Case 14Lx10.5Wx9.5H 6
20000245 4" Shur-Lock II 4.5 ✔ 12 1000 Case 11Lx11Wx12H 4
20000254 5" Shur-Lock II 5.563 ✔ 14.25 1000 Case 14.5Lx14.5Wx10H 2
20000256 6" Shur-Lock II 6.625 ✔ 14.25 1000 Case 14.5Lx14.5Wx10H 2
20095364 3" Shur-Lock Spreader Tool 3.5 - - - Each - 1
20095365 4" Shur-Lock Spreader Tool 4.5 - - - Each - 1
20095366 6" Shur-Lock Spreader Tool 5.563 - - - Each - 1
20002340 1" NS Shur-Lock II 1.315 ✔ 5.7 600 Case 12.5Lx5.75Wx6H 10
20000236 1 1/4" NS Shur-Lock II 1.66 ✔ 5.7 700 Case 12.5Lx5.75Wx6H 10
20002341 1 1/2" NS Shur-Lock II 1.9 ✔ 5.7 700 Case 12Lx8Wx7H 10
20000237 2" NS Shur-Lock II 2.375 ✔ 5.7 700 Case 7Lx6.5Wx16H 10
20000238 2 1/2" NS Shur-Lock II 2.875 ✔ 9.25 1000 Case 14Lx10.5Wx9.5H 6
20000239 3" NS Shur-Lock II 3.5 ✔ 10.75 1000 Case 14Lx10.5Wx9.5H 6
20000260 4" NS Shur-Lock II 4.5 ✔ 12 1000 Case 11Lx11Wx12H 4
20001531 5" NS Shur-Lock II 5.563 ✔ 14.25 1000 Case 14.5Lx14.5Wx10H 2
20000261 6" NS Shur-Lock II 6.625 ✔ 14.25 1000 Case 14.5Lx14.5Wx10H 2
20096421 1" - 1 1/4" Transition Shur-Lock II - 5.7 600 Case 12.75Lx6Wx6.5H 10
20097278 1 1/4" - 1 1/2" Transition Shur-Lock II - 5.7 700 Case 12.25Lx8.25Wx7.5H 10
20097282 1 1/4" - 2" Transition Shur-Lock II - 5.7 700 Case 12.25Lx8.25Wx7.5H 10
20097281 1 1/2" - 2" Transition Shur-Lock II - 5.7 700 Case 12.25Lx8.25Wx7.5H 10

Downloads

Specifications
DL_ShurLock Coupler_8.24
Other documents
Shur-Lock II Installation Guide
No-Stop Shur-Lock ll Installation Guide

Other couplers

Experience the same fast and easy installation of our Push-Lock couplers now with a new, clear body design. Simply push the duct ends into the coupler for a locked and air-sealed assembly. Slightly shorter than the original Push-Lock, the Clear-Lock is ideal for pull boxes, vaults or other limited access areas. The non-metallic construction provides excellent corrosion resistance in buried or encased applications and also has desirable dielectric properties.

Clear-Lock

Experience the same fast and easy installation of our Push-Lock couplers now with a new, clear body design. Simply push the duct ends into the coupler for a locked and air-sealed assembly. Slightly shorter than the original Push-Lock, the Clear-Lock is ideal for pull boxes, vaults or other limited access areas. The non-metallic construction provides excellent corrosion resistance in buried or encased applications and also has desirable dielectric properties.
The latest in Dura-Line's coupler collection, the Redi-Lock™ is ideal for joining lengths of HDPE Sticks but can also be used with continuous length, reeled products.

Redi-Lock

The latest in Dura-Line's coupler collection, the Redi-Lock™ is ideal for joining lengths of HDPE Sticks but can also be used with continuous length, reeled products.
The Split-Lock + is a split coupler produced from a glass fiber reinforced nylon resin. The coupler is heat and UV stabilized, and offers excellent impact strength. It’s reusable and is ideal for temporarily coupling conduits, particularly at slack-loop locations, and also for air-assisted jetting applications. The coupler is easily assembled using a 7/16” nut driver.

Split-Lock +

The Split-Lock + is a split coupler produced from a glass fiber reinforced nylon resin. The coupler is heat and UV stabilized, and offers excellent impact strength. It’s reusable and is ideal for temporarily coupling conduits, particularly at slack-loop locations, and also for air-assisted jetting applications. The coupler is easily assembled using a 7/16” nut driver.
Reverse-threaded aluminum coupler. Tapered threads accommodate a wide range of conduit ODs within a given conduit size. Also available in a Riser/Plenum rated version.

Aluminum Threaded

Reverse-threaded aluminum coupler. Tapered threads accommodate a wide range of conduit ODs within a given conduit size. Also available in a Riser/Plenum rated version.

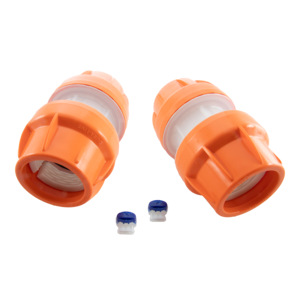

The Clear-Lock Couplers and PinPoint Splices in one simple package. All the advantages of the Clear-Lock couplers with water-tight connectors for the PinPoint locatable duct in one simple kit. A 2.50" kit is also available with our new Redi-Lock coupler.
