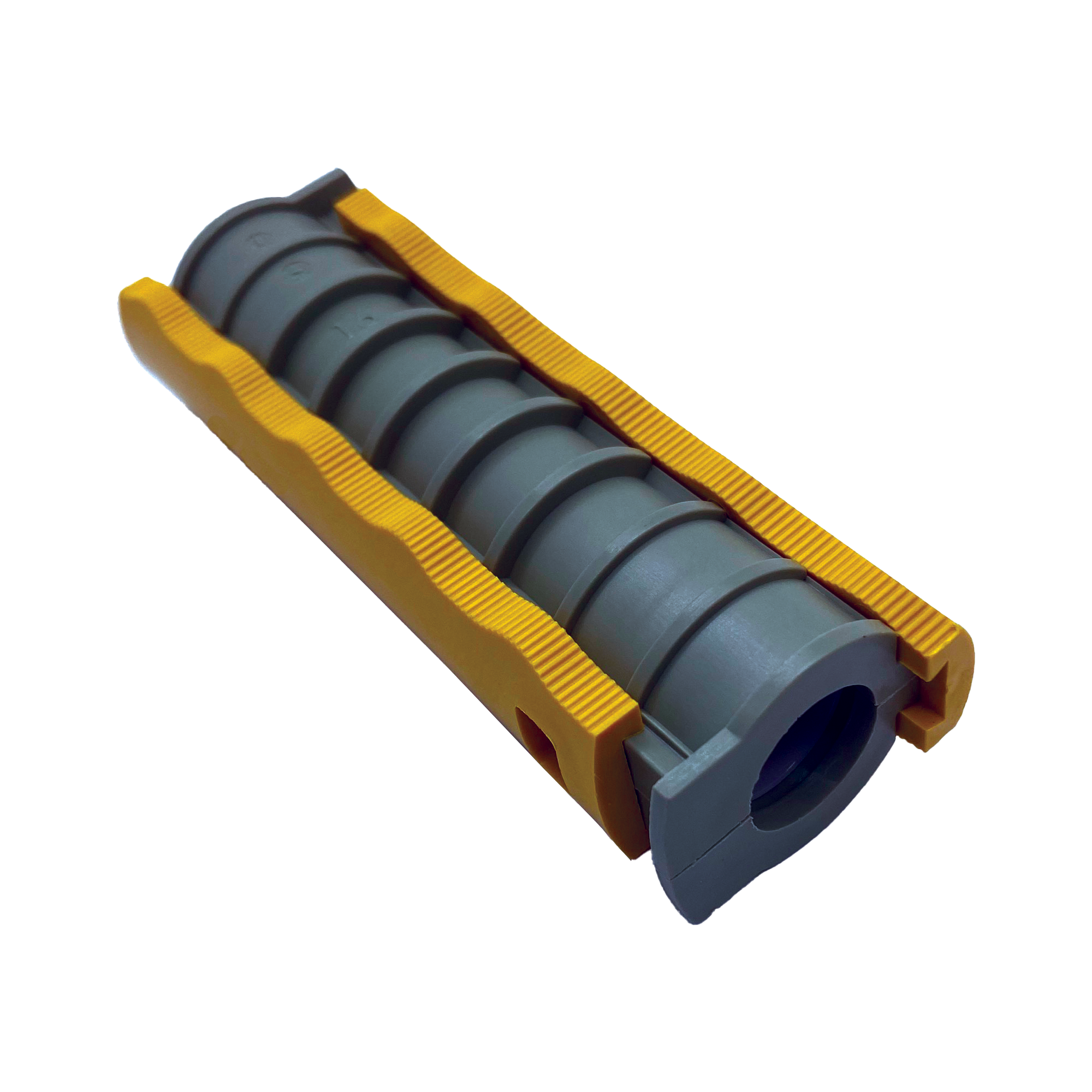

MicroDuct Split Coupler

Excellent for use in repair scenarios, the MicroDuct Split Coupler provides a high quality, air- and water-tight seal. The divisible halves allow for installation around pre-installed cables.
Excellent for use in repair scenarios, the MicroDuct Split Coupler provides a high quality, air- and water-tight seal. The divisible halves allow for installation around pre-installed cables.

Features

  • Can be Direct Buried
  • Air- and water-tight
  • Pressure rated up to 200PSI
  • Fully divisible for easy installation around existing cables
  • No special tools required for assembly
  • Available for MicroDuct OD sizes 14,mm, 16mm, and 18mm
Ask your question
MicroDuct Split Coupler

Technical Specifications

Part # Description Pull Out Strength (lb) Max Pressure (psi) Packaging
20094019 14mm MicroDuct Split Coupler 120 200 Each
20094020 16mm MicroDuct Split Coupler 100 200 Each
20094021 18mm MicroDuct Split Coupler 100 200 Each

Downloads

Specifications Download All
MicroDuct Split Coupler TDS 6.2024
MicroDuct Split Coupler Illustrated Instructions 9.2023
