MicroDuct Mounting Bracket

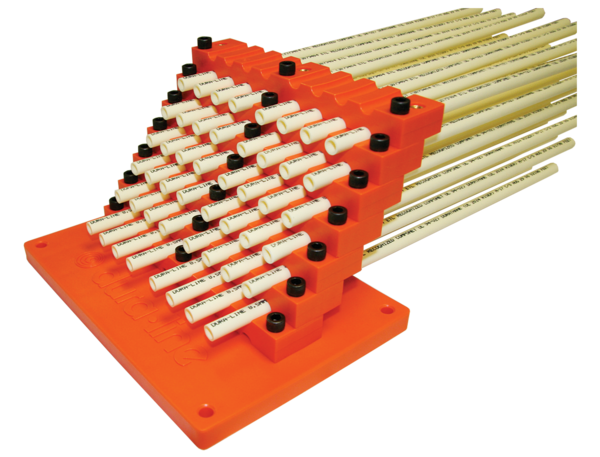

The MicroDuct organizer was designed to organize MicroDucts at termination. It’s small and compact, requiring a minimum amount of mounting space. The modular design allows ordering additional brackets as needed. When ordering the Mounting Plate, please note you will also need to order a Mounting Bracket to complete the first row.
The MicroDuct organizer was designed to organize MicroDucts at termination. It’s small and compact, requiring a minimum amount of mounting space. The modular design allows ordering additional brackets as needed. When ordering the Mounting Plate, please note you will also need to order a Mounting Bracket to complete the first row.

Features

  • Ideal to organize MDU installations
  • Modular System can expand to hold multiple MicroDucts
  • Wall Mounting Plate – attaches base to wall
  • Mounting Bracket – secures each row of MicroDucts
  • Additional Brackets can be ordered for expansion
  • Supported with Technical Bulletin for Installation Instructions
Ask your question
MicroDuct Mounting Bracket

Technical Details

Part #
20001783
Description
MicroDuct Mounting Bracket Screws - Steel 50/pack
Part #
20001719
Description
8.5mm MicroDuct Mounting Bracket
Part #
20001929
Description
12.7mm MicroDuct Mounting Bracket
Part #
20003575
Description
16mm MicroDuct Mounting Bracket
Part #
20002120
Description
8.5mm MicroDuct Wall Mounting Plate
Part #
20002121
Description
12.7mm MicroDuct Wall Mounting Plate
Part #
20003574
Description
16mm MicroDuct Wall Mounting Plate

Downloads

Specifications
DL_Mounting Bracket 2.2019
